FOODS: SCIENCE, TECHNOLOGY AND ENGINEERING

MODIFIED ARRACACHA STARCH FILMS CHARACTERIZATION AND ITS POTENTIAL UTILIZATION AS FOOD PACKAGING

CARACTERIZACIÓN DE PELÍCULAS DE ALMIDÓN MODIFICADO DE ARRACACHA Y SU EVENTUAL APLICACIÓN COMO EMPAQUE DE ALIMENTOS

Oscar J. MEDINA V. Ph.D.¹; Oscar H. PARDO C. M. Sc.¹*; Cesar A. ORTIZ M. Sc.²

1 Grupo de investigación Química y Tecnología de Alimentos (GQTA). Universidad Pedagógica y Tecnológica de Colombia. Avenida Norte, Km 2, Tunja-Boyacá, Colombia.

2 Grupo de investigación en Grupo de Investigación en Superficies Electroquímica y Corrosión (GSEC). Universidad Pedagógica y Tecnológica de Colombia. Avenida Norte, Km 2, Tunja-Boyacá, Colombia.

* Autor a quien se debe dirigir la correspondencia: oscarhernando.pardo@uptc.edu.co.

Received: 04 November 2011 Accepted: 28 August 2012

ABSTRACT

Background: The use of petroleum-based plastics has increased in recent years. These materials are resistant and economically competitive. However, the environmental pollution caused by these is very high. For this reason, some research has focused on the alleviation of this environmental problem, mainly through the development and use of biodegradable polymers. The food industry as an economic dynamic sector is looking for new environmental and secure alternatives for the consumer welfare. In packaging sector, materials should be renewable and final products must be recyclable, innovative and economically competitive. New starch sources could be an adequate alternative. Objetive: The main objective in this research project was to evaluate the chemical modification of arracacha starch, testing different plasticizer concentrations, as a raw material for food biodegradable packaging production. Methods: The arracacha native starch was acetylated or oxidized to produce biodegradable films. The starches were characterized by infrared spectroscopy, scanning electron microscopy, x-ray diffraction and volumetric techniques. Results: Films made with acetylated starch presented more transparency. Native starch films had lower water solubility and greater stability in acid and alkaline conditions. The effect of alkaline conditions was higher than the acid conditions for the three types of films in all treatments. Conclusion: Physicochemical properties of the films were directly influenced by the amount of plasticizer used and by the starch modification type. The physicochemical and microbiological tests of the meat show the possible use of starch films for packaging.

Keywords: Starch, acetylated, oxidized, plasticizer, films.

RESUMEN

Antecedentes: El uso de plásticos derivados del petróleo se ha incrementado en los últimos años. Estos materiales son resistentes y económicamente competitivos. Sin embargo, la contaminación ambiental causada por estos es muy alta. Por esta razón, algunas investigaciones se han centrado en la mitigación de este problema ambiental, principalmente a través del desarrollo y la utilización de polímeros biodegradables. La industria de la alimentación como un sector económico dinámico, está buscando alternativas ambientales y seguras para el bienestar de los consumidores. En el sector de envases, los materiales deben ser renovables, reciclables, innovadores y competitivos; las nuevas fuentes de almidón pueden ser una alternativa. Objetivo: El objetivo de esta investigación fue evaluar la modificación química del almidón de arracacha y variar la concentración del plastificante como materia prima para la producción de películas biodegradables para empaques de alimentos. Métodos: El almidón nativo de arracacha se acetiló u oxidó para producir películas biodegradables. Los almidones fueron caracterizados por espectroscopía infrarroja, microscopía electrónica de barrido, difracción de rayos-x y técnicas volumétricas. Resultados: Las películas obtenidas con almidón acetilado presentaron más transparencia. Las películas de almidón nativo tuvieron una menor solubilidad en agua y una mayor estabilidad en condiciones ácidas y alcalinas. El efecto de las condiciones alcalinas fue mayor que las condiciones ácidas para los tres tipos de películas en todos los tratamientos. Conclusión: Las propiedades fisicoquímicas de las películas fueron directamente influenciados por la cantidad de plastificante utilizado y por el tipo de modificación del almidón. Las pruebas fisicoquímicas y microbiológicas de la carne muestran la posible utilización de películas de almidón como material de empaque.

Palabras clave: Almidón, acetilado, oxidados, plastificantes, películas.

INTRODUCTION

According to recent reports, more than 150 million tons of plastic are produced worldwide every year (1). The pollution caused by these materials is very high, so research activities have focused to alleviate this environmental problem, mainly through the development and use of biodegradable polymers (2).

Biodegradable polymers are used and tested in a large number of applications such as packaging, paper production, fibers, and biomedical applications as implants and controlled release of medicines (3). These polymers must be biodegradable and nontoxic and must have good chemical, mechanical, thermal and rheological properties. In packaging sector, materials should be renewable and final products must be recyclable, innovative and economically competitive (4).

However, only a few monomers and polymers accomplish these requirements. Among most common polymers, starch meets most of these rigorous requirements. Starch essentially consists of a mixture of polysaccharides mainly amylose, amylopectin, and a minor fraction (1% -2%) with non glucosidic conformation (5). Most of the starches in the glucosidic structure are composed of 20% amylose and the remaining 80% amylopectin (6).

Traditionally, Starch is obtained from grains of cereals, seeds of legumes, tubers, and corn is the main source (7-9). However, functional, rheological, and physicochemical properties of starches from non-conventional sources have been studied as well (10).

Several studies have focused on the use of starch in obtaining biodegradable films as a product with non-toxic characteristics, low-cost, abundant raw material, and relatively easy handling (11-13). However, the use of native starches is limited to the condition of processing (temperature, pH and pressure) which reduces their use in industrial applications (14). In addition, the use of the unmodified starch is also limited due to its fragility, when used as packaging material, but also because of the deterioration of mechanical properties at environmental conditions by exposure to moisture, its reduced processability due to its high viscosity and its incompatibility with some solvents and polymers (15, 16).

In order to improve its characteristics, several modifications are carried out with starch, by using three methods: physicochemical reactions, microbial type changes, or a combination of these (6).

Plastics with high content of native starch are highly hydrophilic and quickly disintegrable in contact with water (13). Modif ied starches with lower levels of chemical modification can signif icantly improve their hydrophobicity. Likewise, they change their chemical, physical and rheological properties. The introduction of a polysaccharide ester group is an important development that allows changes in the hydrophilic nature and produces significant changes in the mechanical and thermal properties (6).

This work focuses on the chemical modification of arracacha starch by using two methods (acetylation and oxidation), its suitability as materials for making biodegradable films, with the best physicochemical properties, and its application as food packaging material. It is worth to bear in mind that this root has considerably higher starch content (17), and that Colombia is the largest arracacha producer in the world (18).

MATERIALS AND METHODS

Mature arracacha (Arracacia xanthorrhiza Bancroft) samples, variety yellow, were obtained from La Paz (Santander, Colombia). Arracacha starch was extracted according to the methodology proposed by Aristizábal and Sánchez (19), with some modifications. All reagents used were analytical grade (Merck®, Carlo Erba® and J.T. Baker®).

Arracacha starch acetylation

Acetylated Starch (AS) was obtained with the methodology described by Phillips et al., 1999 (20), with some modifications. 50 g of native starch (NS) in dry dock were suspended in 250 mL of distilled water, pH was adjusted to 8.4 and the solutions were shaken constantly during 30 min. 4.2 g of acetic anhydride were slowly added and pH was maintained between 8.0-8.4. After adjusting pH to 4.5 with HCl 0.5 eq-g L^-1, samples were centrifuged and the precipitates were washed four times with distilled water, dried at 35 ± 2°C on stove, during 48 h, and finally, the obtained starch was milled in a IKA® A11 basic S1 miller.

Arracacha starch oxidation

Oxidized starch (OS) was obtained by following the methodology proposed by Wang et al., 2003 (21), with some modifications. A 20% (w/v) starch suspension was prepared shaking constantly at 35°C during 15 min. Then, pH was adjusted to 9.5 with NaOH 0.3 eq-g L^-1and NaOCl 2.0% of active chlorine (p/v) was added, maintaining pH at 9.5 with NaOH 0.3 eq-g L^-1. The reaction was left for one hour more. Afterwards, pH was neutralized to 7.0 with HCl 0.3 eq-g L^-1, twice washed with distilled water and dried in oven at 35 ± 2°C during 48 h, and finally, the obtained starch was milled in a IKA® A11 basic S1 miller.

Determination of the substitution degree

For the determination of the AS substitution degree, the percentage of acetyl groups was firstly estimated. This percentage was based on the titration of acetyl residues after the sample alkaline treatment (22). 1 g of AS (dry base) in a 250 mL Erlenmeyer flask was weighted. 50 mL of 75% ethanol were added and then placed in a water bath at 50°C, shaking during 30 min. The sample was cooled to room temperature, 40 mL of KOH 0.5 eq-g L^-1 and a few drops of phenolphthalein were added, shaking it throughout the process. The flask was covered and shaken for 72 h more. After this, the saponified sample was titled with HCl 0.5 eq-g L^-1, and kept at rest during 2 h. The additional alkali which could be leachate from sample was titled. Same procedure was carried out with the NS in order to use it as a reference. The percentage of groups CH₃-C = O was calculated as follows:

where: Blank = mL of HCl used in the NS titration; Sample = mL of HCl used in the AS titration; 0.043 = milliequivalents of the acetyl group.

In AS the substitution degree (DS) is equivalent to the average number of hydroxyl groups replaced by groups CH₃-C = O in the anhydrous glucose unit (AGU), and was calculated as follows:

where: 162 = molecular weight of glucose, 4300 = 100 x molecular weight of the acetyl group, 42 = molecular weight of the acetyl group -1.

Determination of Carbonyl groups

The percentage of Carbonyl groups in OS was calculated according to the methodology of Smith (23). 4 g of NS were suspended in 100 mL of distilled water. The suspension was boiled for 20 minutes, cooled to 40°C and pH was adjusted to 3.2 with HCl 0.1 eq-g L^-1. 15 mL of hydroxylamine were added and kept in slow shaking for 4 hours. The excess of hydroxylamine was titled quickly with HCl 0.1 eq-g L^-1 till pH 3.2. A blank with hydroxylamine reagent was used. Carbonyl content was calculated as follows:

where: Blank = mL of HCl used in the NS titration; Sample = mL of HCl used in the AS titration; 0.028 = milliequivalents of the carbonyl group.

Determination of carboxyl groups

The percentage of the carboxyl groups in OS was determined by following the methodology of Chattopadhyay et al., 1997 (24). 2 g of NS were weighted and 25 mL of HCl 0.1 eq-g L^-1 were added. The sample was kept under stirring for 30 min. Sample was vacuum filtered using filters Watman No. 4 and washed with 400 mL of distilled water. Starch paste was transferred to a 500 mL beaker, and 300 mL of distilled water was added. It was warmed in a bath with boiling water along with constant agitation during 20 min. 150 mL of distilled water were added to the dispersion of hot starch adjusting pH to 8.3 with standardized NaOH 0.01 eq-g L^-1. A blank with NS was used and carboxyl content was calculated as follows:

where: Blank = mL of NaOH used in the NS titration, Sample = mL of NaOH used in the AS titration, 0.0453 = milliequivalents of the carboxyl group.

Infrared spectroscopy (FTIR)

NS, OS and AS Infrared spectra were obtained with a Prestige-21 SHIMADZU spectrophotometer. The FTIR analysis was performed using a Prestige-21 SHIMADZU spectrometer. The NS, OS and AS samples were collected using the KBr pellet method. FTIR spectra were recorded at a resolution of 4 cm^-1 and 32 scans. Wave number ranged between 750 and 3500 cm^-1. The NS, AS and OS were equilibrated at 50°C to a constant moisture (10%) prior to analysis.

Diffraction of X-rays (DRX)

The X-ray diffraction was analyzed using a XPERT-PRO PANalytical diffractometer, a conventional copper target X-ray tube set to 40 kV and 40 mA. The X-ray source was Cu Kα-1 radiation and data were collected from 2θ of 5° to 45° (θ being the angle of diffraction) with a step width of 0.02°, at room temperature. The NS, AS and OS were equilibrated at 50°C to a constant moisture (10%) prior to analysis.

Scanning electron microscopy (SEM)

The morphology of the NS, OS and AS samples was observed in a LEO-430 microscope. Samples were placed in a double adhesive tape and coated with carbon at vacuum conditions and 2000x micrographs were captured.

Preparation of starch films

AS, OS and AS films were prepared by suspending 2 g of starch in a mixture of distilled water and glycerol in different proportions, shaken at 500 r.p.m at room temperature for 20 min. The suspension was treated with gelatinization process for 15 min. The mixture was poured into moulds of 30 x 15 cm steel and left to dry at room temperature for 5 days. Followed by a full factorial design AxB, where A is the amount of glycerol with 5 levels (A: 0.6; B: 0.8; C: 1.0; D: 1.2; E: 1.4 mL), and B the type of starches with 3 levels (AS, OS y NS). Combinations (treatments) were considered in total 15.

Physicochemical properties

For the characterization of films, the methodology proposed by Hu et al., 2009 (1), was followed with some modifications.

Transparency films

The transparency value of the films of NS, OS and AS was obtained by measuring its transmittance in a spectrophotometer Thermo GENESYS 10uV at a wavelength of 800 nm. Samples were tested in triplicate.

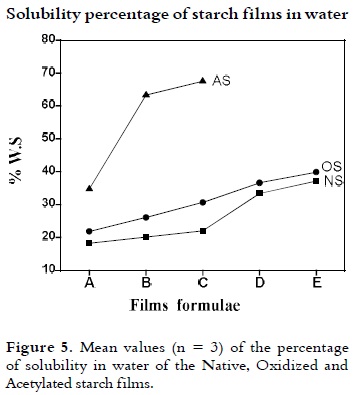

Solubility percentage of starch films in water

Samples with a size of 4 x 2 cm for each NS, OS and AS films were dried up to 40°C until reach constant weight (Wo), submerged in a beaker with 50 mL of distilled water, and the covered vessels staged at 27°C with some agitation for 24 h. After this time, samples were released and dried up to 40°C until reach constant weight (W₂). Percentage of water solubility (% WS) was calculated as follows:

Samples were tested in triplicate.

Stability in Alkaline conditions

Samples with a size of 4x4 cm for each NS, OS and AS films were immersed in sealed glass container with 30 mL of NaOH 0.1 eq-g L^-1 maintaining the temperature at 25°C with eventual stirring. The stability of the films was determined by observing changes in appearance for 60 days and a photographic record was kept.

Stability in acid conditions

Samples with a size of 4x4 cm for each NS, OS and AS f ilms were immersed in sealed glass container with 30 mL of HCl 0.1 eq-g L^-1 maintaining the temperature at 25°C with eventual stirring. The stability of the films was determined by observing changes in appearance for 60 days and a photographic record was kept.

Arracacha starch films used as packaging of meat

Taking into account all characteristics showed by the NS films of formulation C, these were selected for an experiment of application as packing material, as follows:

Two cuts of the same size with a weight of 50 gr of lean beef tenderloin from a healthy calf Normand race 2 years old were packed separately. Another cut of meat with the same characteristics was packed in a commercial plastic bag (Vinipel®). All the samples were stored at refrigeration temperature between 4°C ± 1. To evaluate the effectiveness of arracacha starch films as packing material from the physicochemical and microbiological properties analysis of meat, all the cuts were monitored every three days during a period of 12 days.

pH and titratable acidity determination

The pH was determined by potentiometric method AOAC 945.10 (25) and titratable acidity by volumetric method AOAC 942.15. (26).

Fecal coliforms most probable number (MPN)

The MPN was determined according to the Colombian Technical Norm (NTC 4516). (27)

Statistical analysis

Analysis of variance with the statistical program SPSS version 17 was performed; when significant differences were found, the Tukey test was used (p < 0. 05).

RESULTS

Figura 3

Physicochemical characterization of films

The following are the results of physicochemical trials of five samples from each one of the classes of starch, except for the AS films for which D and E formulations did not allow conducting any tests.

Figura 6

Figura 7

Arracacha starch films used as packaging of meat

pH and titratable acidity determination

Fecal coliforms most probable number (MPN)

Meat extracts packaged in commercial plastic as well as in bags made from NS, formulation C, were diluted at 10^-1, 10^-2 and 10^-3. Of each one, 1 mL was extracted and then inoculated in 3 tubes containing Brilla Broth. All these 3 series of 3 tubes each one, were incubated at 37°C during 48 h. After this, nor gas presence neither turbidity were evidenced in Durham bell, so they were marbled as negatives (-).

DISCUSSION

Characteristics of the starches used in the films preparation

The Percentage of starch extraction matches the value reported by Hermann et al., 1997 (28). Despite of the diversity of its varieties, arracacha starch extraction has been reported as well as its quantification methods. After the esterification reaction was performed, AS was obtained with a percentage of acetyl groups of 6.45%, which equates to a 0.259 DS, (Table 1). This means that from the whole OH functional groups, 0.259 were replaced by acetyls. Similar results have been reported by Singh et al., 2004 (29). The percentage of carbonyl and carboxyl groups of oxidized starch OS was obtained with a value of 0.019 carbonyl groups and a percentage of 0.025 carboxyl groups. Similar results were reported by Sandhua et al., 2008 (30) and Rivas et al., 2008 (31), (Table 1).

Infrared spectroscopy (FTIR) of starches

CONCLUSIONS

AS films showed greater transparency and water solubility than NS and OS films, at the same glycerol amounts. NS Films showed greater stability in acid and alkaline conditions than AS and OS films. In all treatments, for the three types of films, the effect of the alkaline condition was greater than the acid one. The films physicochemical properties are directly influenced by the plasticizer concentration and by the type of starch used for their production. From the laboratory analysis report, is possible to asseverate that films made from arracacha starch are suitable for being used as meat packaging. However, these films experiment a degradation process due to the crystallization of water after 10 days of use.
