ORIGINAL

Biochemical detection of E-ADA on Neospora caninum tachyzoites and the effects of a specific enzymatic inhibitor

Detección bioquímica de E-ADA en taquizoitos de Neospora caninum y los efectos de un inhibidor enzimático específico

Alexandre A. Tonin,¹* Ph.D, Aleksandro S. Da Silva,² Ph.D, Victor C. Pimentel,³ Ph.D, Daniele Zanini,³ Ph.D, Maria Rosa C. Schetinger,³ Ph.D, Vera M. Morsch,³ Ph.D, Giovana Camillo,⁴ M.Sc, Fernanda S.F. Vogel,⁴ Ph.D, Sonia T.A. Lopes,¹ Ph.D.

¹Universidade Federal de Santa Maria, Departamento de Clínica de Pequenos Animais, Santa Maria, Brasil.
²Universidade do Estado de Santa Catarina, Departamento de Zootecnia, Chapecó, Brasil.
³Universidade Federal de Santa Maria, Departamento de Química, Santa Maria, Brasil.
⁴Universidade Federal de Santa Maria, Departamento de Medicina Veterinária Preventiva, Santa Maria, Brasil.

*Correspondence: tonin.aat@gmail.com

Received: April 2014; Accepted: October 2014.

ABSTRACT

Objective. This study aimed to investigate the presence and activity of the ecto adenosine deaminase (E-ADA) enzyme in tachyzoites of Neospora caninum (Nc-1 strain), as well as to assess the activity of a well-known E-ADA inhibitor, the deoxycoformycin. Materials and methods. The parasites were grown in cell culture, being subsequently separated in a pellet of tachyzoites, on which the E-ADA activity was tested using the concentrations 0 (control), 0.2, 0.4 and 0.8 mg mL-1. Results. The E-ADA showed high activity, progressively increasing its activity according to the enhancement of the protein concentration. The test was carried out with different concentrations of deoxycoformycin, showing that it was able to inhibit the E-ADA present on the free form of the parasite. Conclusions. Based on these results we conclude that the E-ADA is present on tachyzoites of N. caninum, and deoxycoformycin is able to inhibit this enzyme. In this sense, knowing the negative impact of N. caninum on reproductive issue in cattle (mainly abortion), might it is an alternative in order to deal with this parasitic infection.

Key words: Adenosine deaminase, deoxycoformycin, neosporosis (Source: CAB, MeSH).

RESUMEN

Objetivo. Este estudio tuvo como objetivo investigar la presencia y la actividad de la adenosina deaminasa (E-ADA) en taquizoitos de Neospora caninum (Nc-1 cepa), así como ensayar un conocido inhibidor de estas enzimas. Material y métodos. Los parásitos se multiplicaron en cultivo celular y posteriormente fueron separados en un sedimento de taquizoitos. La actividad de E-ADA fue probada en el parásito, usando concentraciones de 0 (control), 0.2, 0.4 y 0.8 mg mL-1. Resultados. El E-ADA tenía una alta actividad aumentó progresivamente de acuerdo con la concentración de proteínas. La prueba se llevó a cabo con diferentes concentraciones del inhibidor E-ADA (desoxicoformicina) y fue capaz de inhibir la presente E-ADA en el parásito. Conclusiones. Por la observación de los resultados se concluye que la enzima E-ADA está presente en taquizoítos de N. caninum, y desoxicoformicina es capaz de inhibir la acción de la enzima. En este sentido, conocer el impacto negativo del parásito en los problemas productivos y reproductivos en el ganado (principalmente abortos), estos resultados pueden ser una alternativa para evitar esta enfermedad parasitaria.

INTRODUCTION

Neospora caninum (N. caninum) is an obligate, intracellular, coccidian, protozoan parasite of the phylum Apicomplexa (1). Infection by N. caninum can cause the clinical disease known as neosporosis, which most notably presents itself as abortion in cattle (2). The main form of N. caninum that causes the acute infection in the intermediate host is the tachyzoite (3). At the early stage of infection, tachyzoites probably modulate host cell functions, while late stages probably are targeted for destruction by the host, diminishing their pathogenicity (4-6). The biological cycle of N. caninum is very similar to the one generated by Toxoplasma gondii (1,7). Literature has described different proteins (mainly belonging to kinase's family) as a regulator of the biological cycle of T. gondii (8), as well as it can occur in N. caninum. The effective treatment of neosporosis is unknown, thus proteins and enzymes present in the parasite may became a parallel line of studies, in order to test inhibitors as an alternative way for treatment.

The purinergic system, between various components, presents the enzyme ecto adenosine deaminase (E-ADA). E-ADA is considered to be a key enzyme in the purine metabolism, catalyzing the irreversible deamination of adenosine and deoxyadenosine to inosine and deoxyinosine, respectively, and closely regulating extracellular adenosine and inosine concentrations (9,10). In this sense, 2'-Deoxycoformycin, a potent inhibitor of E-ADA, is increasingly used as a tool to investigate adenosine metabolism (10). However, on N. caninum, E-ADA has not been studied yet, becoming the main purpose of this study. Thus, the aim of this study was to investigate the presence and the activity of E-ADA on N. caninum tachyzoites, as well as to assess the effects of deoxycoformycin on the activity of this enzyme.

MATERIALS AND METHODS

Local. The experiment was conducted at the Laboratory of Animal Parasitology, at Universidade Federal de Santa Maria, city of Santa Maria, Brazil.

Neospora caninum isolate. Neospora caninum tachyzoites (NC-1 isolate) were maintained by continuous passage in Vero cell culture, using standard procedures. Parasites were harvested from tissue culture, and viability was determined by trypan blue exclusion (11), followed by counting three aliquots in a Neubauer chamber. For inoculation, organisms were adjusted to the appropriate concentration (1x106 tachyzoites/mL). Tachyzoites were washed three times in PBS, adjusted at pH 7.4 and NC-1 tachyzoites were separated into pellets for E-ADA analysis.

Preparation of tachyzoites. The pellet of tachyzoites was resuspended in 50 mmol/L per mM of phosphate buffer; pH 6.5 in order to measure the E-ADA activity. The protein concentration of the tachyzoites was measured by the method of Bradford (12) with bovine serum albumin used as the standard. The concentration of proteins in the parasite was expressed as mg mL-1.

E-ADA activity in tachyzoites. To measure the E-ADA activity in tachyzoites of N. caninum, it was used the technique described to evaluate the E-ADA activity on trypomastigotes forms of Trypanosoma evansi (13). In this sense, E-ADA activity was measured spectrophotometrically on tachyzoites of N. caninum through the modified method of Guisti and Galanti (14). The enzymatic reaction was started by addition of 500 µL of 21 mmol/L adenosine as substrate, and it was incubated for 1h at 37°C. The reaction was stopped by adding 1.5 ml of 106/0.16 mM phenol-nitroprusside to the reaction mixture, which was immediately mixed with 1.5 ml of 125/11 mM alkaline-hypochlorite (sodium hypochlorite) and vortexed. The ammonia released would react with alkaline-hypochlorite and phenol in the presence of a catalyst-sodium nitroprusside to produce indophenol (a blue color) and the concentration of ammonia is directly proportional to the absorbance of indophenol read at 620 nm. Ammonium sulfate of 75 µM was used as ammonium standard. The specific activity is reported as U/mg of protein. The estimation was performed in triplicate.

Tests with E-ADA inhibitor: deoxycoformycin. For this test it was evaluated the action of deoxycoformycin (Pentostatin® - Tocris) on tachyzoites of N. caninum. The amount of 0.8 mg mL-1 of protein from the parasite was used in order to measure the E-ADA activity. For these tests it was used four concentrations: 10 nM, 1nM, 25 pM and 15 pM deoxycoformycin. The dose of inhibitor was set in a pilot study and all the tests were carried out in triplicate.

Statistical analysis. The results of the E-ADA activity on tachyzoites were submitted to analysis of variance followed by Duncan test (p<0.05). The analyses were performed using SAS statistical package (SAS Institute, Cary, NC, USA).

RESULTS

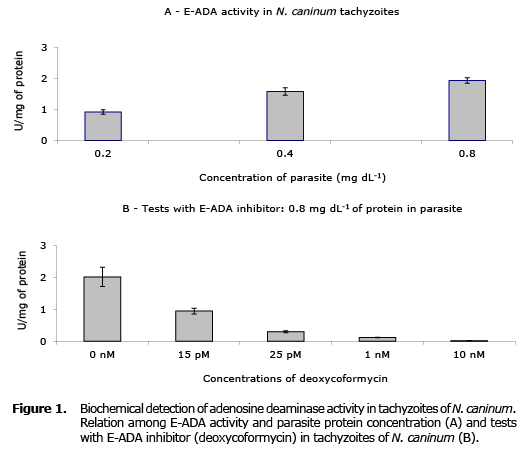

The pellet tachyzoites of N. caninum eluted on phosphate buffer showed a protein concentration of 0.88 mg mL-1, while the E-ADA activity was assessed at concentrations of 0, 0.2, 0.4, and 0.8 mg mL-1. In this study the presence of E-ADA on tachyzoites of N. caninum was detected biochemically, showing that in the lowest and highest concentrations of proteins tested, the ADA activity remained between 0.92 and 1.93 U/mg of protein, respectively (Figure 1A). Tests with deoxycoformycin on E-ADA activity showed that this inhibitor acts on the E-ADA own of the N. caninum. Inhibition of parasite E-ADA activity was directly proportional to the largest concentration of deoxycoformycin used (Figure 1B).

DISCUSSION

Probably, on the parasite, ADA is in charge of the regulation of adenosine concentration and, consequently, inosine, as occurs in other mammals (9). Our results are corroborated by other studies, for example, using the same method, the E-ADA was detected in trypomastigotes of T. evansi (13). Also, according literature, the N. caninum tachyzoites express a potent type-I nucleoside triphosphate hydrolase (15), similar T. gonddi. In this sense, it was already demonstrated that T. gondii is capable of synthesizing pyrimidine nucleosides (16). Then, purine is needed for the parasite growth, and, for this reason, it must be recovered from the host cell (17), as well as from the protozoa.

Inhibition of E-ADA activity in N. caninum was directly proportional to the largest concentration of deoxycoformycin used. This finding suggests the need for further studies, in order to test whether the E-ADA inhibitor may have harmful effect on N. caninum, which could bring improvements on how the chemotherapy against this parasite is conducted. In a study with other protozoa, it was observed that when E-ADA inhibitor was only used in the treatment of T. brucei in mice, the curative action was not observed and the animals died as a consequence of the disease (18). However, studies showed that the treatment with an adenosine analogue called cordycepin (3`-deoxyadenosine), when protected by an inhibitor of E-ADA, it was effective, showing curative treatment indexes on mice infected with T. brucei (18,19). This approach will be investigated in further studies in vivo with neosporosis by our group.

This study allowed us to conclude that the enzyme E-ADA was present in N. caninum tachyzoites. We also conclude that the deoxycoformycin tested is able to inhibit the E-ADA detected in this study in parasite, which might be an option for chemotherapy. In this sense, knowing the negative impact of N. caninum on reproductive issue (2) in cattle (mainly abortion), might it is an alternative in order to deal with this parasitic infection.

REFERENCES

1. Dubey JP, Schares G, Ortega-Mora, LM. Epidemiology and control of neosporosis and Neospora caninum. Clin Microbiol Rev 2007; 20(2):323-367.         [ Links ]

2. Larson RL, Hardin DK, Pierce VL. Economic considerations for diagnostic and control options for Neospora caninum-induced abortions in endemically infected herds of beef cattle. J Am Vet Med Assoc 2004; 224(10):1597-1604.         [ Links ]

3. Goodswen SJ, Kennedy PJ, Ellis JP. A review of the infection, genetics, and evolution of Neospora caninum: From the past to the present. Infect Genet Evol 2013; 13:133-150.         [ Links ]

4. Weston JF, Heuer C, Williamson NB. Efficacy of a Neospora caninum killed tachyzoite vaccine in preventing abortion and vertical transmission in dairy cattle. Prev Vet Med 2012; 103(2-3):136-44.         [ Links ]

5. Quinn HE, Miller CMD, Ellis JT. The cell-mediated immune response to Neospora caninum during pregnancy in the mouse is associated with a bias towards production of interleukin-4. Int J Parasitol 2004; 34(6):723-732.         [ Links ]

6. Ellis J, Sinclair D, Morrison D, Al-Qassab S, Springett K, Ivens A. Microarray analyses of mouse responses to infection by Neospora caninum identifies disease associated cellular pathways in the host response. Mol Biochem Parasitol 2010; 174(2):117-127.         [ Links ]

7. Reid AJ, Vermont SJ, Cotton JA, Harris D, Hill-Cawthorne GA, Könen-Waisman S, Latham S. M. Comparative Genomics of the Apicomplexan Parasites Toxoplasma gondii and Neospora caninum: Coccidia Differing in Host Range and Transmission Strategy. PLoS Pathog 2012; 8(3):e1002567.         [ Links ]

8. Kato K, Sugi T, Iwanaga T. Roles of Apicomplexan protein kinases at each life cycle stage. Parasitol Int 2012; 61(2):224-234.         [ Links ]

9. Desrosiers MD, Cembrola KM, Fakir MJ, Stephens LA, Jama FM, Shameli A, Mehal WZ, Shi Y. Adenosine deamination sustains dendritic cell activation in inflammation. J Immunol 2007;179(3):1884-1892.         [ Links ]

10. Dalla-Rosa L, Da Silva AS, Ruchel JB, Gressler LT, Oliveira CB, França RT, Lopes STA, Leal DBR, Monteiro Silvia G. Influence of treatment with 3--deoxyadenosine associated deoxycoformycin on hematological parameters and activity of adenosine deaminase in infected mice with Trypanosoma evansi. Exp Parasitol 2013; 135(2):357-362.         [ Links ]

11. Johnson S, Nguyen V, Coder D. Assessment of cell viability. Curr Protoc Cytom 2013; 9(9.2): 10.1002/0471142956.cy0902s64.         [ Links ]

12. Bradford MM. A rapid and sensitive method for the quantitation of microgram quantities of protein utilizing the principle of protein-dye binding. Anal Biochem 1976; 72(1):248-254.         [ Links ]

13. Da Silva AS, Pimentel VC, Jaques JA, Wolkmer P, Tavares KC, Lazzarotto CR, Miletti LC, Schetinger MR, Mazzanti CM, Lopes ST, Monteiro SG. Biochemical detection of adenosine deaminase in Trypanosoma evansi. Exp Parasitol 2011; 128(3):298-300.         [ Links ]

14. Giusti G, Galanti B. Methods of Enzymatic Analysis. 3rd ed. Verlag Chemie. Weinheim, Germany, 1984.         [ Links ]

15. Asai T, Howe DK, Nakajima K, Nozaki T, Takeuchi T, Sibley LD. Neospora caninum: tachyzoites express a potent type-I nucleoside triphosphate hydrolase. Exp Parasitol 1998; 90(3):277-285.         [ Links ]

16. Fox BA, Gigley JP, Bzik DJ. Toxoplasma gondii lacks the enzymes required for de novo arginine biosynthesis and arginine starvation triggers cyst formation. Int J Parasitol 2004; 34(3):323-31.         [ Links ]

17. Chaudhary K, Darling JA, Fohl LM, Sullivan WJ Jr, Donald RG, Pfefferkorn ER, Ullman B, Roos DS. Purine salvage pathways in the apicomplexan parasite Toxoplasma gondii. J Biol Chem 2004; 279(30):31221-31227.         [ Links ]

18. Rottenberg ME, Masocha W, Ferella M, Petitto-Assis F, Goto H, Kristensson K, McCaffrey R, Wigzell H. Treatment of African trypanosomiasis with cordycepin and adenosine deaminase inhibitors in a mouse model. J Infect Dis 2005; 192(9):1658-1665.         [ Links ]
