1.Introduction

A biosensor is a unified device that can detect analytes (bacteria, fungi, cancer cells, biomarkers, drugs, peptides, proteins, hormones, pollutants, food, and additives, etc.) found in complex matrices (water, air, soil, biological samples, in vitro systems, etc.)(¹). Biosensing techniques have gained exponential interest due to their advantages, such as high selectivity and sensitivity, short analysis cycle, and real-time sensing (²). They have been developed by integrating the unique specificity of biological reactions and the high sensitivity of physical sensors (²). A biosensor can be defined as an analytical electronic device that generates an electronic signal through receptor-target analyte interactions (³). Its main principle is to detect the molecular recognition event and transform it into a measurable signal in a process called signalization (⁴-⁶). As shown in Figure 1, its basic components include (i) a bioreceptor or biological recognition system capable of detecting the analyte, (ii) a transducer required to convert the biorecognition event into a measurable signal, and (iii) a signal processing system to prepare the signal for display in a user-friendly manner (⁴-⁷).

Figure 1 Schematic representation of a biosensor. SPR: surface plasmon resonance; SPRi: surface plasmon resonance imaging; SAW: surface acoustic waves-based; QCM: quartz crystal microbalance. (Adapted from (3-7).

Biosensors can be classified based on the nature of the bioreceptor or transducer employed, as shown in Figure 1. First, in relation to the biomolecules comprising the recognition system, a biosensor can be protein-, peptide-, cell-, nucleic acid-, enzyme-, antibody-, or biomimetic-based. And second, with regards to the type of transducer, a biosensor can be classified as optical (absorption, reflection, refraction, fluorescence, luminescence, etc.), mass-based (piezoelectric), electrochemical (potentiometric, amperometric, impedimetric, etc.), or calorimetric, among other possibilities (³,⁵-⁷).

In order to develop a biosensor, several things need to be considered: first, the identification of the target analyte, then the selection of a suitable bioreceptor molecule with the appropriate immobilization method, and last, the determination of a suitable transducer (⁸). However, as the process continues, it is necessary to quantify and optimize parameters such as the measurement range, linearity, interference, and biosensor packaging (⁸). An ideal biosensor could be characterized as having high selectivity, sensitivity, reproducibility, accuracy, reliability, robustness, and stability (⁸,⁹).

In the field of biosensing techniques, researchers often aim to develop a portable device that can perform rapid detection, be reusable, and have the potential to prevent costly laboratory tests (⁸). Moreover, biosensors are expected to match the ASSURED criteria established by the World Health Organization (WHO), which stands for Affordable, Sensitive, Specific, User-friendly, Rapid and Robust, Equipment-free, and Deliverable to end-users (¹⁰). Recently, portability has gained importance because of its potential applicability to the point of care (¹¹).

Biosensing techniques have broadened their scope of applications and nowadays are ubiquitous in different fields, including clinical disease monitoring, medical devices, and drug delivery systems (Figure 2) (⁴). The recognition of disease status at the biomolecular level has attracted wide attention from researchers (¹²). Due to their relation to gene expression, nucleic acids are among the most important biomarkers and are the most frequently investigated among biomolecules (⁹,¹³). Even small changes in nucleic acid sequences can lead to notable biological and biomedical implications (⁹,¹³). For instance, single nucleotide polymorphisms (SNPs) are believed to reveal the genetic basis of individual susceptibility to disease and the diverse responses to treatment (²). Thus nucleic acid-based biosensors are required to incorporate amplification strategies to detect the presence of low-abundant mutations (⁹).

Figure 2 Scope of applications for biosensing techniques. (Adapted from (⁴,⁶).)

A nucleic acid-based sensor or genosensor is a biosensor that functionalizes a single strand of nucleic acid as the biorecognition element and immobilizes it on the surface of a transducer (³). The biorecognition event will be detailed in the next section (⁷). Considering that the sensing elements employed are oligonucleotides, genosensors can detect specific DNA, RNA, or aptamer sequences. The central importance of nucleic acid-based biosensors is associated with detecting disease biomarkers, early disease diagnostics, gene therapy, and pathogen determination (⁹,¹³-¹⁵). Furthermore, nucleic acid detection is essential in food safety, especially for the monitoring of foodborne disease pathogens and mycotoxins (¹⁴). Nucleic acids can be immobilized in the biosensor, working as the biorecognition element, but they can also constitute the target analyte.

A major safety concern for using biosensors for in vitro diagnostics is associated with the risk of misdiagnosis due to a false‐positive or false‐negative result. This would lead to inappropriate patient management and even to an inadequate public health response (¹⁶). In order to reduce the risk of misdiagnosis, regulatory agencies, such as the United States Food and Drug Administration (FDA), have developed guidelines, standards, operating procedures, and performance criteria applicable to major aspects of biosensor manufacturing and use (¹⁶). However, good reproducibility of results in the final prototype could still be a challenge, interfering with the compliance of regulatory aspects (¹⁷).

Considering the advantages of biosensing techniques such as easy operation, low cost, and simple sample preparation; their potential development for point-of-care diagnostics in developing countries has been investigated (¹⁷). In these countries, where main complex medical infrastructures are unavailable, infectious diseases and antimicrobial resistance cause a large disease burden (¹⁷). However, further efforts should be directed towards implementing biosensing techniques as diagnostic tools in developing countries.

This review aims to establish state of art, comprising the recent advances in the use of nucleic acid-based biosensors and their novel applications to the detection of nucleic acids. Particular emphasis will be given to the performance characteristics, advantages, and challenges. Additionally, food safety applications of nucleic acid-based biosensors will be discussed.

2.Biosensors as medical devices

Numerous applications of biosensing techniques have been reported in healthcare and clinical fields. Throughout the history of biosensing techniques, there has been an intrinsic association with medical devices and, in many cases, has prompted the development of novel biosensors (⁶,⁷).

The earliest reported biosensor was the Leyland Clark coated oxygen electrode, which contained the glucose oxidase enzyme and was helpful measuring levels of blood glucose (⁷,¹⁸). The glucose oxidase enzyme converts the glucose substrate into gluconolactone and hydrogen peroxide, with an important oxygen consumption feature. The drop in the dissolved oxygen that could be measured, and indirectly, the levels of blood glucose could be calculated (⁷,¹⁸). This biosensing principle of immobilizing the glucose oxidase enzyme can be applied to almost any oxidase enzyme, enabling the development of other enzyme-based biosensors with clinical applications (¹⁹-²¹). Currently, glucose biosensors continue to be used; some devices are used in situ as a drug delivery system to monitor and regulate the patient’s glucose levels. These biosensors have been applied to diagnose and monitor diabetes mellitus, where precise control over blood glucose levels is required (²²,²³).

Moving on to antigen-antibody interactions, the first commercially available immunoassay was responsible for detecting the presence of human chorionic gonadotrophin (hCG), also known as the home pregnancy test. Initially, it was only possible to detect the presence or absence of hCG, displaying the result as pregnant or not. But later models have used colorimetric quantitation to assess hCG levels and estimate the elapsed time since conception (⁶).

Biosensors for protein determination can be involved in detecting diseases and pathogenic microorganisms such as viruses, bacteria, parasites, and fungi, and even in the identification of antimicrobial resistance patterns (²⁴-³⁰). Some of the most important proteins detected using biosensors are the p53 protein, expressed in more than 90% of cancers (³¹,³²), the Tau protein, useful for the diagnosis of Alzheimer's (³³), and C-reactive proteins, involved in inflammation processes (³⁴). Recently, the monitoring of antigenic proteins of SARS-CoV-2 has been reported, which could be implemented for the rapid detection of Covid-19 (³⁵). Additionally, there are biosensors used to detect RNA-viruses that could have potential application in detecting Covid-19 which use nucleic acids as biorecognition elements (for example, aptamers and antigen-Au/Ag nanoparticles) and can be coupled to a variety of transducers such as electrochemical, optical, and surface plasmon resonance (³⁶). Biosensors are also useful for detecting peptides, which can be biomarkers for early disease detection. For example, the determination of beta-amyloid peptides could enable an earlier diagnosis of Alzheimer’s disease (³⁷).

The main difficulty in the biosensor design is identifying the target analyte related to the disease. Hepatocellular carcinoma (HCC) requires the earliest diagnosis due to the limited therapeutic options. The diagnosis is based on the level of (-fetoprotein, but their up-regulation is also a consequence of other liver diseases and pancreatitis; for this reason, it is considered a biomarker of low sensitivity and specificity. Several proteins have been identified as related to HCC as α-fetoprotein-L3, annexin-2, des-gamma-carboxyprothrombin, Golgi protein-63, glypican-3, midkine, osteopontin, squamous cell carcinoma antigen, thioredoxins, and urokinase plasminogen activator receptor. Most of these analytes are of low abundance and will require a biosensor with high sensitivity. This is an example of the importance of identifying the biosensor target analyte, which is the major issue to resolve (³⁸).

The development of whole cell-based biosensors has rapidly accelerated, demonstrating their huge potential in biomedical diagnosis and analysis of environmental and food matrices (¹⁵,³⁹,⁴⁰). The major advantages of these systems are high sensitivity and selectivity, reagentless rapid detection, and cost-effective testing during routine inspections or at the points of care (²⁵). For example, a novel biosensor has been designed to detect Staphylococcus aureus, a pathogen responsible for causing foodborne diseases (⁴¹).

Moreover, other reported biosensors include a surface plasmon resonance-based biosensor optimized to monitor hemoglobin levels in human blood, a biosensor for quantifying cardiac markers in undiluted serum, and a microfluidic impedance platform for controlling endothelin-induced cardiac hypertrophy, among others (⁴²,⁴³). In particular, in the drug discovery and development pipeline, there are numerous reports of fluorescent biosensors used for hit identification, lead optimization, and pharmacokinetic evaluations (⁴⁴-⁴⁸).

3.Biosensors in food and environmental monitoring

Water environments contain numerous pollutants such as petroleum-related products, pesticides, pharms, drugs, etc. The pharmaceutical industry, hospitals, geriatric and healthcare houses are the main sources of drug pollutants in water that affect humans, plants, and animals (⁴⁹). Antibiotics, hormones, analgesics, and cytostatics or β-blockers have been associated with a high risk of negative effects on the environment and public health, such as reproductive impairment (⁵⁰-⁵²), increased incidence of cancer, and development of antibiotic-resistant bacteria (⁵³). Moreover, increased toxicity due to synergistic effects has also been reported (⁵⁴). Since biosensing techniques could offer important advantages, rigorous validation studies with environmental samples should be carried out (⁵⁵).

The use of biosensing techniques has been reported in monitoring residues from veterinary drugs used in food-producing animals (⁵⁵). Endocrine-disrupting chemicals are contaminants of water and soil; estrogens can interfere with the balance of hormone metabolism in the organism, affecting physiological functions such as growth, development, and reproduction. In addition, synthetic estrogens are mostly used in contraception or hormone therapy (⁵⁶). Exogenous substances in the environment can mimic the effects of estrogens, such as pesticides, veterinary drugs, feed additives, industrial chemicals, etc. The aptamers have great potential in biosensing to detect estrogens. Kim et al., identified DNA aptamers bound to 17b-estradiol and were applied to an electrochemical sensing platform to construct an electrochemical aptasensor with high sensitivity and specificity to 17b-estradiol (⁵⁷). Similarly, Jo et al., isolated single-stranded DNA aptamers that specifically recognize bisphenol A (⁵⁸). Ma et al., fabricated an electrochemical aptasensor with AuNPs coated boron-doped diamond-modified electrodes to immobilize aptamers. Bisphenol A biosensor had a linear range of 1.0x10^-14 to 1.0x10^-9 M and a detection limit of 7.2x10^-15 M. The aptasensors were applied to measure commercial milk samples containing bisphenol A; the aptasensor was able to detect this estrogen with recoveries of 92-108% (⁵⁹). The electrochemical aptasensor based on gold nanoparticles dotted graphene nanocomposite film modified electrode showed a linear concentration between 0.01-10 mM with a detection limit of 5 nM. The bisphenol A content in liquid milk and milk powder was determined, being the average recovery of 105%. Abnous et al., developed an electrochemical aptasensor forming a bridge between the aptamer and its complementary strand; this aptasensor selectively detected bisphenol A with 0.08-15 nM detection range and a detection limit of 15 pM. This aptasensor allowed to determine the bisphenol content in grape juice samples; the recoveries were 88.6-97.3% (⁶⁰).

Nameghi et al., developed an electrochemical aptasensor for measuring 17b-estradiol; in this system, split DNA aptamers that bind 17b-estradiol were used as recognition elements to construct a split1-17b-estradiol-split2 complex. This aptasensor was tested on the milk samples spiked with 17b-estradiol, the detection limit was 0.7 pM with a linear range of 0,003-9 nM, and the recoveries were 89.4% to 101.7% (⁶¹).

Rathnayake et al., isolated the bacterial strain B. megaterium from the soil; this bacterium was transformed with a GFP plasmid. The transformed bacteria VR1 was immobilized in a sol-gel matrix to be used as a whole-cell bacterial biosensor. The biosensor is based on the percentage survival of bacteria VR1 in the presence of different heavy metals. The results showed that bacteria strain was more sensitive to Cu, followed by Cd and Zn. The fluorescence signal depended on the cell density, and the optimal response was obtained with a cell density of 0.09. The linear range of the effective concentration curve of the survival of B. megaterium VR1 showed a coefficient of determination (R2) of more than 0.95 and p = 1.4×10^-5; 1.1×10^-6; 7.2×10^-9 for Cd, Cu, and Zn respectively at 95% confidence. The interaction between the toxicant and the microorganisms is inherent of biological relevance, and the response entirely depends on the individual organism used (⁶²).

4.Nucleic acid-based biosensors

A nucleic acid-based biosensor can be defined as a device that brings together a nucleic acid as the biorecognition element and a transducer responsible for converting the biorecognition event into a measurable signal (⁴). Recently, these biosensors are gaining importance due to their broad usefulness in monitoring parameters, which is very important in the fields of clinical diagnosis, drug development, and the food industry, among others. Nucleic acid molecules can be classified as DNA, RNA, peptide nucleic acid (PNA), and aptamers. The principle behind nucleic acid-based biosensors lies in the biorecognition event, based on the hybridization mechanism (Figure 3). This event occurs when the probe sequence immobilized on the transducer has been designed to complement the target sequence and to exhibit selectivity for non-complementary sequences (⁵,⁷,⁶³). On the contrary, in the case of aptamers, the detection principle is more similar to antigen-antibody or receptor-ligand interactions; it is usually accompanied by conformational changes in the aptamer (⁷).

Figure 3 The biorecognition event in nucleic acid-based biosensors for the detection of nucleic acids corresponds to the hybridization process between the DNA probe and the target strands. (Adapted from (³-⁵)).

It is also possible to classify the biosensor depending on the biorecognition element: DNA-based biosensors could be single-stranded DNA (ssDNA), also known as DNA aptamer, double-stranded DNA (dsDNA), stem-and-loop DNA, and triplex-helical DNA. Regarding RNA-based biosensors, the biorecognition element could be single-stranded RNA (ssRNA), also known as RNA aptamers. In addition, PNA has also been reported as an alternative biorecognition element (¹⁴).

4.1 Aptamers

In biochemistry, these are a family of single-stranded DNA or RNA oligonucleotides. In biosensing techniques, aptamers are considered a type of biorecognition element under the nucleic acid-based biosensors category. Aptamers can bind to targets such as proteins, drugs, peptides, and cells. DNA aptamers have been reported to exhibit high selectivity and affinity, binding to diverse bioanalytes such as nucleic acids, cells, proteins, viruses, and small molecules such as aflatoxin B1, cocaine, dopamine, and metal ions. They have also been shown to have an ability to differentiate between enantiomers. However, RNA aptamers usually exhibit higher binding affinity than DNA aptamers compared to the same target sequence, owing to the 2' hydroxyl functional group in the RNA aptamers (⁶⁴-⁶⁷).

The biorecognition event, in this case, the binding between the aptamer and the target ligand, induces a conformational change in the secondary and tertiary structures of the aptamer. Therefore, in aptamer-based biosensors, these structural changes are responsible for generating an often-easy-to-detect signal (⁷,⁶⁴). The aptamer detection model has certain similarities with the antigen-antibody model regarding the binding pattern mechanism. But aptamers have a major advantage: their three-dimensional structure enables high affinity and binding specificity.

Aptamers can resist harsh environmental conditions, be stored without special requirements, and be obtained with high reproducibility and low production costs (¹⁴,⁶⁸,⁶⁹). The major challenge in developing aptamer-based biosensors is the identification of the specific ssDNA/RNA sequences capable of binding to the target ligand. Consequently, the aptamer sequence is chosen by combinatorial methods and libraries of random oligonucleotides (⁷). The selection of aptamer candidates is made by an in vitro method called the systematic evolution of ligands by exponential enrichment (SELEX). The SELEX process aims to produce specific oligonucleotides that bind to a predefined target. It is a versatile tool because it allows some variants to be developed to optimize aspects such as the efficiency, specificity, and affinity of the aptamer. As shown in Figure 4, the SELEX process begins with generating a library containing around 10¹³ to 10¹⁵ random oligonucleotide sequences of 30-80 bp each. Second, the binding or incubation step begins as the random library sequences are incubated with the immobilized target molecule. The nucleic acids that bind to the target are considered aptamers, whereas the unbound nucleic acids are simply filtered out of the solution. Third, through an elution process, the separation of nucleic acids bound to the target occurs. Fourth, the obtained aptamers are copied using PCR in a process called amplification. A new optimized library is created, after which the newly synthesized library is used to start another cycle of the SELEX process (⁷).

Figure 4 Representative scheme of the SELEX process. (Adapted from (⁵,⁷)

The competitive binding in each new cycle of the SELEX process enables the identification of the species with the highest binding affinities. It is possible to introduce molecules with similar structures to optimize the affinity (⁶⁴,⁷⁰,⁷¹).

Aptamers make possible the development of new biometric tools for food safety applications, detecting microorganisms, cadmium ions, mycotoxins, pesticides, and small molecules (⁷¹-⁷⁴).

5.Immobilization techniques

Nucleic acid-based biosensors are developed by immobilizing nucleic acids to a solid support and their coupling to a transducer. The immobilization process aids in probe orientation and accessibility to the target element (⁹⁰-⁹²). DNA is frequently preferred as the biorecognition element over other nucleic acid molecules because of its advantages, including signal and target amplifications and chemically stable and reusable bio-recognition layers formation (⁹⁰). Therefore, this section focuses on immobilization techniques of DNA-based probes.

In the design of a DNA-based biosensor, it is important to consider the DNA immobilization process before developing the sensor because it significantly influences the efficiency and response of the biosensor. Immobilization methods depend on the purpose of the biosensor and the nature of the transducer. In order to be considered an ideal immobilization, the transducer surface must: 1) exhibit specific binding to the DNA probe in solution, and 2) maintain the capacity to detect the presence of the analyte (⁹⁰).

5.3 Formation of the avidin-biotin complex

Both avidin and streptavidin are quaternary proteins, and they have similar properties, such as weight and structure, and biotin is a vitamin with a strong affinity for avidin and streptavidin. The formation of an avidin-biotin complex or a streptavidin-biotin complex represents a strong non-covalent interaction (Figure 5C) (¹⁰⁰).

Chung et al., (¹⁰¹) designed an electrochemical DNA-based biosensor to detect the influenza type A virus by conjugating a biotinylated DNA probe (5’-biotin-ATG AGT CTT CTA ACC GAG GTC GAA-3’) and an avidin-modified glassy carbon electrode. Different concentrations of target DNA were employed. The calculated LOD was 8.51×10⁻¹⁴M, and good sensitivity for detecting the target DNA was demonstrated.

Terse-Thakoor et al., designed an electrical biosensor using a streptavidin-biotin system, graphene nanogap electrodes, and gold nanoparticles (¹⁰²). The results showed a sensitivity of 0.3 µA/nM and a LOD of 0.25 pM for streptavidin detection.

Figure 5 Schematic representation of DNA immobilization techniques: A) Physical adsorption. B) Covalent attachment C) Immobilization of biotinylated DNA-probes C.1) Formation of the avidin/streptavidin complex C.2) Biotin/avidin or biotin/streptavidin complex. Adapted from (¹⁰³).

6.Biosensors for nucleic acid detection

The study and detection of single molecules such as DNA have gained enormous relevance and have numerous applications in the clinical field (²). The detection principle of nucleic acids using a nucleic acid-based biosensor relies on the hybridization reaction (Figure 3) or target interactions in the case of aptamers (¹⁴,¹⁵). Moreover, nucleic acid-based biosensors for nucleic acid detection can be classified according to the biorecognition element, the structure of the bioreceptor, or the type of transducer (Figure 6).

Accurate, rapid, and sensitive detection of nucleic acids in complex matrices plays an important role but remains challenging (¹³,¹⁰⁴). One of the most investigated strategies for improving sensitivity is signal amplification, which refers to optimizing the biomolecules immobilized in the bioreceptor to enhance signal output and reliability (⁹). Particular examples of biosensors that employ signal amplification techniques will be addressed below in this chapter.

Figure 6 Classification of nucleic acid-based biosensors for nucleic acid detection. Adapted from (³-⁷).

It is important to mention that if the biorecognition event involves hybridization and the biosensor employs an electrochemical transducer, the detection can be mediated by two different pathways: label-free or labeled detection. Label-free electrochemical detection of DNA hybridization is based on intrinsic DNA signals of electroactive DNA bases such as guanine or adenine. On the contrary, labeled electrochemical detection of DNA hybridization employs redox-active probes as labels, which can selectively bind with dsDNA/ssDNA. The objective of these pathways is to obtain a measurable decrease/increase in the oxidation/reduction peak current, through electroactive DNA bases or electrochemical labels.

In 2020, Wang et al., developed a novel electrochemical biosensor for nucleic acid detection, using the stable free nitronyl nitroxide monoradical 2,2,6,6-tetramethylpiperidine 1-oxyl (TEMPO) as an electrochemical label. TEMPO constitutes a rational choice because of its high electrochemical activity, a clear electrochemical signal in aqueous solution, high stability, low pollution, and high utilization rate (¹³,¹⁰⁵,¹⁰⁶). Thus Wang et al., reported the first use of TEMPO as an electrochemical label for ssDNA-detection and highlighted its good performance (13). The biorecognition element used was PNA, which was immobilized on the surface of a glassy carbon electrode. Under optimal conditions, the linear range was found to be 10 pM to 100 nM, and the LOD was calculated as 2.57 pM. The specificity of PNA conferred high selectivity to the biosensor. Likewise, the repeatability and storage stability were verified. Regarding the analytical performance of this method in complex serum samples, it was confirmed that the biosensor could effectively exclude interfering substances and detect the target DNA (¹³).

Addressing the issue of early disease diagnosis, in 2020, Moccia et al., developed the first paper-based electrochemical PNA biosensor for the detection of miRNA-492, a suggested biomarker for pancreatic ductal adenocarcinoma (PDCA) (107,108). It is well known that clinicians face a great challenge concerning the silent progression of PDCA due to the complexity of an early diagnosis, which delays timely treatment (¹⁰⁹-¹¹¹). This reported paper-based biosensor was built on a miniaturized, sensitive, and robust paper-based platform by screen-printing a three-electrode system on previously wax-patterned office paper. Thus, the screen-printed electrodes were built from silver/silver chloride ink for the pseudo-reference electrode and graphite ink for the counter and working electrodes. Therefore, the electrochemical transducer was based on a graphite working electrode, but it had a modified surface with gold nanoparticles, which enabled anchor points and controlled PNA immobilization (¹¹).

The selected biorecognition element was PNA because of its enhanced binding affinity detecting DNA and RNA molecules. Moccia et al., achieved a stable and effective duplex formation between PNA and miRNA-492, mainly by designing the PNA probe to fully complement miRNA-492 with antiparallel orientation (¹¹,¹¹²). Later, the probe density was optimized for the concentration of 100 nM of PNA probe in the presence of a 50 nM miRNA-492 target, where the highest signal variation (33%) and lowest RSD (18%) were recorded. The linear range was between 50 and 100 nM, and the LOD was calculated as 6 nM (¹¹). The selectivity was challenged by adding sequences with one- or two-base mismatches or a fully random sequence. The biosensor showed excellent selectivity towards the target analyte, with no significant signal change even when the interfering sequences were present at a higher concentration (¹¹). Additionally, the paper-based biosensor was tested in undiluted blood serum as a complex matrix, achieving a LOD of 22 nM. Therefore, potential applicability for early PDCA diagnosis based on the quantification of miRNA-492 could be further explored (¹¹). Ultimately, some unique advantages of a paper-based biosensor must be emphasized besides matching the ASSURED criteria, such as sustainability, cost-effective fabrication, portability, and reduction in waste management (¹⁰,¹¹³).

Li et al., reported a DNA nanostructure-based platform that enables a recyclable biointerface for ultra-sensitive detection of nucleic acid. The probe DNA was, in fact, a nanostructure composed of chemically cross-linked branched DNA (CCLB-DNA) designed to increase probe distance and exposure of the interface in the solution phase. As a result, the signal was significantly enhanced, possibly because of an increased probability of collision between the DNA probes and the target DNA (T-DNA), further leading to an elevated capture rate of T-DNA. The rationale for designing a biorecognition platform with increased probe distance was based on a previous kinetic and thermodynamic analysis that revealed an enhanced hybridization process (¹¹⁴). The transducer employed was an electrical device that senses frequency changes of a quartz crystal resonator, which is known as a quartz crystal microbalance (QCM). While it enables label-free, sensitive DNA detection, quartz crystal chips have exhibited limited reuse capacity. Besides the elevated cost and pollution of the existing regeneration strategies, limitations include time consumption, inefficiency, or destruction to the functional layer (¹¹⁴-¹¹⁶).

DNA was immobilized on the gold surface of the quartz crystal through Au-S bonds. Frequency shifts generated by the hybridization of the target T-DNA with the CCLB-DNA probes were amplified by further hybridization of the DNA functionalized Fe₃O₄ (M-Fe₃O₄) nanoparticles with the other end of the T-DNA. Finally, the chip was immersed in a urea solution in order to release the T-DNA and M-Fe₃O₄, demonstrating that the recognition layer was easily regenerated. No frequency attenuation was observed, and the stability was maintained after four cycles of detection and recovery. The excellent reusability characteristics exhibited by this biosensor make it an excellent prospect for engineering recyclable biointerfaces. Regarding the performance characteristics, the LOD was reported to be as low as 500 fM, and the concentration exhibited a linear relationship with the frequency shifts in a range of concentrations from 500 fM to 1 μM (¹¹⁴). It is important to point out that this CCLB-DNA-based biosensor successfully overcomes the alleged “size dilemma” of nanoscale sensors, which refers to a reduced collision probability between probes and target molecules due to the restricted quantity of immobilized probes that can fit in the limited space available (¹¹⁴,¹¹⁷-¹¹⁹).

Tian et al., developed a graphene field-effect transistor (G-FET) biosensor with PNA probes for trace RNA detection. A control biosensor using traditional DNA probes was also manufactured to evaluate the advantages of the developed biosensor that employs PNA. The DNA probes exhibited the limitations of long hybridization time, background electrical noise, and relatively poor specificity (⁶³). It was found that the PNA probe G-FET (PNA-G-FET) biosensor achieved a LOD of 0.1 aM, while the DNA probe biosensor exhibited a LOD three orders higher (100 aM). An important advantage conferred by the PNA probe over the biosensor was enhanced sensitivity and specificity compared to the control device. A large electrical response of the PNA-G-FET sensor to the target RNA was reported. Since the hybridization of PNA-RNA is much faster than that of DNA-RNA, the authors demonstrated that the PNA-G-FET could shorten the detection time. The linear response displayed by the PNA-G-FET, was from 0.1 aM to 1 pM, while for DNA probe-modified G-FET, it was from 100 aM to 1 pM. These results demonstrate that the PNA probe could be ideal for the G-FET biosensors for nucleic acid detection, associated with improvements in the sensing performance (⁶³). It is important to highlight three fundamental theoretical aspects considered by Tian et al., that led to the design of their PNA-G-FET biosensor: (1) PNA probes can enhance the specificity of hybridization and shorten the detection time (¹²⁰), (2) field-effect transistor sensors improve sensitivity, analysis efficiency, detection cost, and accuracy, and (3) graphene has a high specific surface area and elevated electron mobility, allowing easy interaction with biomolecules through π-π bond stacking (⁶³,¹²¹).

Pathogen diagnosis is essential for disease prevention and proper treatment (¹²²). PCR is usually the preferred method for clinical pathogen diagnosis; however, it entails rigorous requirements, such as well-equipped laboratories, trained personnel, extensive time consumption, and complicated sample preparation (¹²³). Therefore, alternative and competitive detection strategies would be desirable.

For example, Dengue and Zika infections pose a great threat to human life, represented by their high morbidity and mortality rate. These infections usually entail a difficult clinical diagnosis due to similar clinical manifestations (¹²⁴-¹²⁶). Dengue and Zika viruses have certain similarities that would make simultaneous detection an essential tool for providing a timely treatment: both of these viruses share the transmission vector of the Aedes mosquitoes, sharing the geographical distribution as well as the seasonal correlation (¹²⁷). Dengue and Zika diagnoses are usually based on virus isolation cultures, enzyme-linked immunosorbent assays (ELISA), and genomic RNA detection using PCR. However, simultaneous and synchronous detection for multiplexed nucleic acids has rarely been reported (¹²⁷,¹²⁸).

In 2017, Xie et al., (¹²⁷) reported a single-stranded probe DNA bioreceptor that simultaneously detects RNA sequences of Dengue and Zika viruses through a fluorescence transducer. They synthesized a water-soluble and stable metal-organic framework (MOF) that exhibits high affinity toward carboxyfluorescein or 5(6)-carboxyrhodamine, triethylammonium salt (ROX)-tagged single-stranded probe DNA through π stacking and electrostatic interactions, thus quenching the fluorescence of the tag. Fluorescence transducers have been shown to exhibit high sensitivity and rapid response time. In contrast, MOFs as quenching platforms for fluorophore-labeled nucleic acid detection have been reported to enhance the sensitivity and reduce background noise (¹²⁹-¹³¹).

Employing a detection time of 36 min and 2 min, the calculated LOD was 332 and 192 pM with the single detection method, and 184 and 121 pM with the synchronous detection method for Dengue and Zika viruses, respectively. Both assays were highly specific, with no interference by other mismatched RNA sequences, even down to single-base mismatched RNA sequences. There was no cross-reaction between the two probes for synchronous detection. The reported linear range was from 0 to 60 nM (¹²⁷).

A comprehensive summary of the performance characteristics of the discussed biosensors is shown in Table 1.

In general, the performance characteristics of the biosensors mentioned above are aligned with the ASSURED criteria, demonstrating short detection time, competitive LOD, linear range, and specificity. Most studies emphasize parameter optimization, assessment of storage stability, regeneration potential, reproducibility of manufacture, and application to complex/real matrixes. The authors clearly explained the theory and rationale supporting the designed biosensors, which were very promising for develop new biosensing techniques.

Even though the nucleic acid-based biosensors reviewed here share a nucleic acid analyte and the fundamental hybridization mechanism (except aptamers), the reported detection platforms are very diverse. The development of materials for biosensing platforms needs to be acknowledged: they are essential for novel biosensor designs and constitute a constantly expanding field.

7.Nucleic acid-based biosensors in detection of foodborne pathogenic agents

Food contamination can be categorized according to the nature of the causal agent: bacteria, viruses, parasites, prions, and chemicals, among others (¹³²). Diverse biosensors have been designed to detect foodborne pathogenic agents, spanning the range from enzyme-based to immune and thermal-based mechanisms. Among nucleic acid-based biosensors, reported analytes related to food contamination include proteins, nucleic acids, and ions. Huo et al., (¹³²) reported a nucleic acid-based biosensor to detect food contaminants that provides a rapid food-safety analysis.

Bacterial contamination in food and water is a serious public health problem worldwide associated with increased animal and human mortality and higher health expenses (¹³³). Most bacterial foodborne diseases have similar symptoms, including diarrhea, emesis, and fever, challenging timely detection and incidence estimation. According to the WHO, approximately 600 million illnesses and 420,000 deaths occur annually due to foodborne pathogenic bacteria (¹³⁴,¹³⁵). However, these data could be grossly underestimated because of misdiagnoses, under-reporting (in minor outbreaks), and inadequate sample collection or analysis (¹³³). The infections that constitute major causes of illness, hospitalizations, and deaths worldwide are salmonellosis, campylobacteriosis, and Shiga toxin-producing Escherichia coli (STEC). However, despite listeriosis having a lower incidence, it is one of the most lethal foodborne diseases, with an associated mortality rate of 37% (¹³⁶).

Within this context, there is an urgent need to find new, rapid, and highly sensitive methods for detecting foodborne pathogenic bacteria. Conventional methods depending on cell culture can take several days to yield results; therefore, interesting alternatives include PCR, ELISA, surface plasmon resonance (SPR), and electrochemical impedance spectroscopy (EIS). Even though these alternatives can be more specific, more sensitive, and faster, they can also be more expensive in terms of instrumentation, involve tedious processes, or require highly qualified personnel for handling (¹³⁷). For this reason, many efforts have focused on the search for inexpensive, rapid, and robust biosensors for the detection of foodborne pathogenic bacteria. This section presents the latest trends in this area.

7.2Group B Streptococci

In 2015, Yuan et al., (¹⁶¹) developed an electrochemical biosensor for ultrasensitive and specific detection of nucleic acids by combining a defective T junction induced transcription amplification (DTITA), as shown in Figure 7. Primer extension reaction and in vitro transcription amplification were triggered to produce numerous single-stranded RNA. These RNA products of DTITA could further hybridize with the detection probes and immobilize capture probes for enzyme-amplified electrochemical detection on the biosensor's surface (¹⁶¹).

Figure 7 Defective T junction induced transcription amplification (DTITA). (Adapted from (¹⁶¹).

In terms of performance characteristics, the isothermal DTITA strategy displayed remarkable signal amplification performance and reproducibility. The biosensor showed a very high sensitivity for target DNA, with a LOD of 0.4 fM, as low as 400 copies of genomic DNA, and a linear range of 1fM to 1nM. Moreover, the established biosensor was successfully verified for directly identifying Group B Streptococci in clinical samples (¹⁶¹).

7.3Salmonella typhimurium

In 2016, Yan et al., (¹⁶²) developed an electrochemical biosensing strategy for ultrasensitive and specific detection of pathogenic nucleic acids by directly integrating homogeneous target-initiated transcription amplification (HTITA) with an interfacial sensing process in a single-analysis system, as shown in Figure 8. The HTITA amplification strategy resulted in numerous single-stranded RNA products, which could synchronously hybridize with the detection probes and immobilized capture probes for enzyme-amplified electrochemical detection on the biosensor surface.

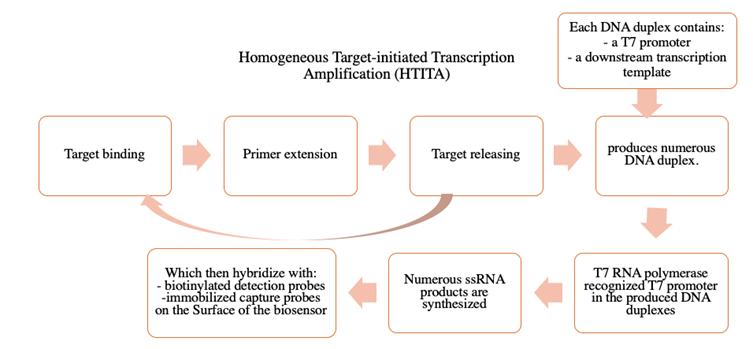

Figure 8 Diagram of homogeneous target-initiated transcription amplification (HTITA). (Adapted from (¹⁶²)

The proposed electrochemical biosensing strategy showed very high sensitivity and selectivity for target DNA, with a dynamic response range from 1 fM to 100 pM and a calculated LOD of 0.97 fM. Using Salmonella typhimurium as a model, the established strategy was successfully applied to directly detect the invA gene from genomic DNA extract (¹⁶²).

Alternatively, Shasha Li et al., (¹³⁵) reported a new technique for detecting pathogenic bacteria, using the isothermal circular strand displacement polymerization strategy (ICSDP). This technique involves a polymerization reaction of a specific primer with a single-stranded template in the presence of polymerase. The target can be replaced by a second target during polymerization, which promotes more polymerization cycles and amplifies the detection. Even though ICSDP has been widely used to detect various analytes such as nucleic acids, proteins, small molecules, and toxic metals, this is the first report of bacterial detection (¹⁶³-¹⁶⁶).

The working principle of the novel ICSDP developed for bacterial detection is described in Figure 4. The technique is made up of five elements: (i) the arched probe, used for the specific recognition of the target analyte, in this case, Salmonella typhimurium, (ii) a hairpin probe 1 (HAP-1) that functions as a template, (iii) a fluorescence-quenched hairpin probe 2 (HAP-2) that functions as a pre-primer and is the fluorescent signal indicator, (iv) DNA-polymerase enzymes (Phi-29), and (v) an endonuclease (Nt.AlwI), involved in the amplification cycles. The arched probe comprises an anti-S typhimurium aptamer, which is carefully designed to specifically recognize the bacteria and release the T trigger (Figure 9. Step 1). The T trigger recognizes the 5' terminal region of HAP-1, which has a T * sequence, which generates a change in its three-dimensional structure, and its 3' terminal region is exposed (Figure 9, Step 2). This region will specifically recognize the S region of HAP-2, which will again change its three-dimensional conformation to leave the L tail exposed and unpaired (Figure 9, Steps 3-4). This tail is digested by the enzyme phi 29; meanwhile, the Dabcyl fluorophore present in the L tail is released, and the detectable fluorescent signal is generated (Figure 9, Step 5). Finally, the enzyme Nt.AlwI breaks the pairing of the T trigger with HAP-1, leaving the T sequence free to repeat the cycle (Figure 9, Step 8).

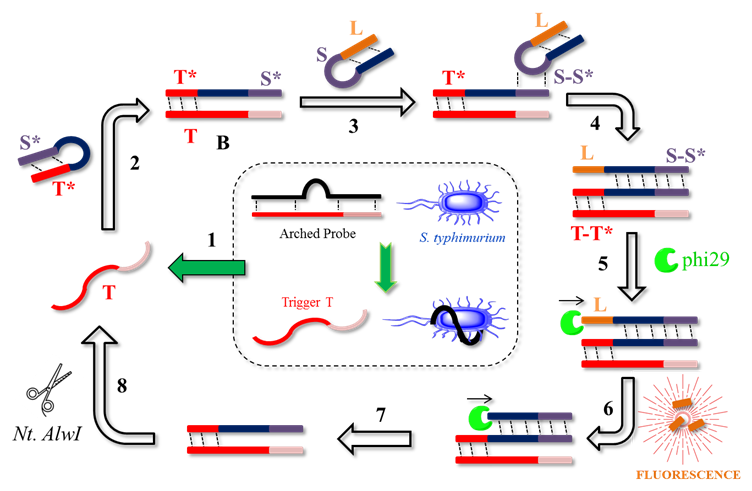

Figure 9 General scheme of ICSDP-type biosensor for the detection of foodborne pathogenic bacteria. (Adapted from (¹³⁵)

The developed ICSDP strategy constitutes a robust detection method with shorter analysis times than conventional techniques and a simplified operation involving single reaction step. The method is highly sensitive, with a LOD below 1.5 CFU mL^-1, and it is specific for S. typhimurium in the presence of different bacteria such as B. subtilis, Listeria, and E. coli, having fluorescence intensity values close to 1000 a.u for S. typhimurium and values less than 100 a.u. for the other bacteria under the same conditions. Finally, the authors challenged the method with complex milk matrices, demonstrating competitive efficiency with recovery percentages between 98% and 109%, similar to conventional methods based on counting and cell culture (¹³⁵)

7.4 Salmonella enteritis and Staphylococcus aureus

Fluorescence biosensors, such as SPR and surface-enhanced Raman scattering (SERPS) biosensors, have different action principles. Still, most of them share the same working pattern: (i) capture of the analyte, (ii) separation, (iii) flushing, and (iv) amplification and detection of the signal. These processes involve two major challenges for the development of bacterial biosensors. On the one hand, bacteria tend to be present in complex matrices, so they must be captured, separated, labeled, and rinsed before being detected, which involves tedious sample treatment processes. At the same time, given the low concentrations of the bacteria in food samples, biosensors must be highly sensitive. The latter could be achieved with high surface areas that enable efficient biosensor-analyte interaction (¹⁶⁷).

To face these challenges, Chen et al., (¹⁶⁷) proposed a multi-channel structured 3D chip made up of an organic polymer of polymethyl methacrylate (PMMA) cut in the shape of a disk (Figure 10) (¹⁶⁶). Given its high porosity, generated during the polymerization processes, the 3D chip has a high surface area, which facilitates mass transfer, offers many active sites, has good flexibility for the optical path of light, and simplifies the analytical process. The active sites of the 3D chip were occupied with an aptamer specifically designed to recognize a particular bacterium (Figure 10A). A complex sample is forced to flow through the disk, where the aptamer selectively captures the bacteria, and the other analytes are eluted (Figure 10B). Finally, through a strategy known as hybridization chain reaction (HCR), the signal of the immobilized bacterium is amplified in order to obtain a fluorescent signal, which is similar to the strategy proposed by Shasha Li et al., in 2019 (Figure 10C) (¹³⁵,¹⁶⁷).

Figure 10 Multi-channel structured 3D chip for the detection of foodborne pathogenic bacteria. (Adapted from (¹⁶⁷)

The 3D multichannel chip biosensor is fast (15-minute analysis), inexpensive, and does not require multiple reaction steps. The designed biosensor efficiently detected two bacterial models: Salmonella enteritis and Staphylococcus aureus, reaching a LOD below 4 CFU mL^-1 and a wide linear range that oscillates in the range of 4.5 × 10¹ to 4.5 × 10⁶ CFU mL^-1. The 3D chip model opens new possibilities since it could be scaled to other optical detection strategies (¹⁶⁷).

7.5 Microcystin-LR

Not only bacteria pose food contamination problems: also, the toxins they produce can lead to serious diseases, mainly because they remain in food and water at low concentrations. For example, cyanobacteria produce a group of biologically active toxins called microcystins, posing a serious threat to aquatic organisms and human health. Microcystin-LR (MC-LR) is the most common and dangerous ones in the group. It has been reported that exposure to low concentrations of MC-LR may be associated with the development of tumors, liver cancer, and chronic diseases. The WHO recommends a concentration of less than 1 µg mL^-1 of MC-LR in water. Thus there is an urgent need to develop highly sensitive and precise biosensors that will allow reliable detection of MC-LR at low concentrations (¹⁶⁸).

Wu et al., (¹⁶⁸) reported a novel biosensor that could be extrapolated to other similar analytes (Figure 11). It is made up of two strands (A and B) chemically bonded to a polyacrylamide polymer. Subsequently, these strands are joined together by an MC-LR aptamer that generates a hydrogel in which the aptamer will function as a crosslinking agent. Cu/Au/Pt nanoparticles are encapsulated within this DNA-hydrogel. Upon contact with the MC-LR analyte, the aptamer specifically binds to the target, forming a target-aptamer complex that disintegrates the membrane, releasing the metallic nanoparticles. The free metallic nanoparticles catalyze the reaction between TMB (Tetramethylbenzidine) and H₂O₂, thus generating a strong blue coloration that can be monitored using colorimetric techniques (¹⁶⁸).

Figure 11 General DNA-hydrogel scheme for the detection of MC-LR. (Adapted from (¹⁶⁸).

The authors demonstrated that this biosensor is reliable and feasible: it was tested fresh fish and spiked water samples, yielding recovery percentages between 95% and 107% and RSD lower than 5%. Additionally, the results obtained with this biosensor were consistent compared to the ELISA kit. A linear range of 0.004-10 µg L^-1 and a LOD of 3.0 ng L^-1 were reported, exhibiting values much lower than those reported for other analytical techniques for the detection of MC-LR: chemiluminescence, using the antibody-antigen model (¹⁶⁹), electrochemical, using 3D graphene electrodes (¹⁷⁰), or fluorescence, using Eu nanospheres, among others (¹⁶⁸).

A comprehensive summary of the performance characteristics of the discussed biosensors is shown in Table 2.

Table 2 Summary of performance characteristics for the discussed biosensors for detection of foodborne pathogenic agents.

Authors	Biorecognition element	Analyte	Transducer	LOD	Linear range	Real Samples	Amplification Strategy
Nazari-Vanani et al., 2019	ssDNA	Synthetic DNA of E. faecalis	Gold electrode	3.3 amol L-1	1.0 × 10-17 to 1.0 × 10-12mol L-1	Genomic DNA LOD: 7.1 × 10-9ng mL-1 Linear range: 1.1 × 10-7 to 1.1 ng mL-1	N.A
Yuan et al., 2015	Aptamer	Synthetic DNA of Group B Streptococci	Gold electrode	0.4 fM	1fM to 1nM	Genomic DNA from clinical vaginal/anal samples	DTITA
Yan et al., 2016.	Aptamer hairpin	Salmonella typhimurium	Gold electrode	0.97 fM	1 fM to 100 pM.	LOD: 105 CFU mL-1 Linear range: 10-107 CFU mL-1	HTITA
Shasha Li et al., 2019	Arched probe aptamer, HAP-1, HAP-2	Salmonella typhimurium	Fluorescence	1.5 CFU mL-1	1000 a.u	Milk 98-109%	ICSDP
Chen et al., 2014	3D chip-PMMA	Salmonella enteritis and Staphylococcus aureus	Fluorescence	4 CFU mL-1	4.5 × 101 to 4.5 × 106 CFU mL-1.	N. A.	HCR
Wu et al., 2020	Polyacrylamide hydrogel: aptamer strands	MC-LR	Colorimetric	3.0 ngL-1	0.004 to 10 µgL-1	Fresh fish %Recovery: 95-107	N.A

DTITA: defective T junction induced transcription amplification; HTITA: homogeneous target-initiated transcription amplification; ICSDP: isothermal circular strand displacement polymerization; HAP-1: Hairpin Probe 1 ; HAP-2: fluorescence-quenched hairpin probe 2; Phi-29: DNA-polymerase enzymes; Nt.AlwI: endonuclease; PMMA: polymethyl methacrylate; MC-LR: Microcystin-LR.

In addition to the discussed novel applications of nucleic acid-based biosensors in food safety, it is important to emphasize several other reports that may be older but strengthen the importance of biosensing techniques in food quality monitoring. Escherichia coli is a bioindicator of fecal contamination in food and has been detected using potentiometric biosensors (¹⁷¹-¹⁷³). The screening of food sweeteners through biosensors has been explored because of their association with dental caries, cardiovascular diseases, obesity, and type-2 diabetes (⁴³). Commercially available biosensors have important applications in the fermentation industry because of their potential for online monitoring of critical metabolites that need to be controlled and optimized in the biological processes. Biosensors for detecting and quantifying biochemical parameters such as glucose, lactate, lysine, and ethanol, among others, have been reported (¹⁷⁴). Glutamine deficit has been associated with pathologies such as malabsorptive disorders; therefore, requirements for supplementation have been increasing (¹⁷⁵). An amperometric biosensor for detecting glucose, glutamate, and glutamine in cell-culture fermentation processes has been reported (¹⁷⁶). The aging of beer has been monitored using enzymatic biosensors based on cobalt phthalocyanine (¹⁷⁷). Biosensing techniques have also been reported to quantify organophosphates in milk (¹⁷⁸) and carbamic and organophosphates in water, orange juice, and wine samples (¹⁷⁹-¹⁸¹).

Conclusions and future perspectives

This review compiles research aimed at the design and development of biosensors to detect analytes in complex matrices. There is evidence of notable progress in the identification and/or quantification of analytes in biological and environmental samples with selectivity, specificity, and low detection limits. However, there is an urgent necessity to make progress in developing biosensors that can be used in situ, maintaining or improving the analytical properties achieved in the design phase.

Biosensors as medical devices have proved valuable and promising tools for mitigating morbidity and mortality caused by high-impact diseases. Biosensors have been used for the early diagnosis of diseases, identification of biomarkers, monitoring of the evolution of pathologies during treatment and as drug delivery systems. The greatest challenge in designing biosensors for disease diagnosis is identifying the bioreceptor-analyte pair that allows selectivity, specificity, and sensitivity to ensure the absence of false positives.

Aptamers are excellent biorecognition elements, with advantages such as (i) versatility, because they can be used for the identification of cells, proteins, nucleic acids, metabolites, pathogens, drugs, enantiomers, etc. (ii) they have both high affinity and specific binding to the target, due to their three-dimensional conformation, (ii) the ability to hybridization allows the dual function of immobilization to the support and interaction with the analyte, (iii) reproducibility, stability over time and low costs.

Despite the great progress that has been made in developing analytical methods to monitor the presence of pathogens or toxins in the food chain (food production, storage, transport, and marketing), biosensors are urgently needed to ensure food safety.
