OBTAINING HIGH VALUE PRODUCTS IN A BIOREFINERY TOPOLOGY USING MICROALGA0

OBTENCIÓN DE PRODUCTOS DE ALTO VALOR AGREGADO EN UNA TOPOLOGÍA DE BIOREFINERÍA UTILIZANDO MICROALGAS

Ángel-Dario González-Delgado^1*, Andrés-Fernando Barajas-Solano² and Viatcheslav Kafarov²

¹Universidad de San Buenaventura, Cartagena, Bolívar, Colombia
²Universidad Industrial de Santander, Bucaramanga, Santander, Colombia

E-mail: cisyc@uis.edu.co

(Received: Jul. 24, 2012; Accepted: Sep. 05, 2013)

*To whom correspondence should be addressed
⁺V Congreso Internacional de Ciencia y Tecnología de los Biocombustibles, CIBSCOL 2012, Universidad Industrial de Santander, Bucaramanga, Santander, Colombia. 5 - 8 de junio de 2012.

ABSTRACT

Microalgae biomass presents high potential for third-generation biofuel production. It also contains other products whose recovery can contribute to the sustainability of linear biofuel production chains. These substances are currently treated as impurities that are extracted along with lipids, causing a negative influence on the biodiesel production process. Therefore, the separation of these substances has a dual benefit. On one hand, high value products are obtained, and on the other, purer oil is produced for the generation of biofuel, approaching the biorefinery concept.

This study proposes the incorporation of a chlorophyll production stage in a biorefinery topology. The variables affecting the separation of these components are evaluated along with the most appropriate location of the stage in the process diagram. The best conditions for the separation of pigments from lipids are given at a biomass/solvent ratio of 1/10 g/mL, a temperature of 45°C and a time of 4 h, where the biomass/solvent ratio is the most influential variable. The highest efficiency for obtaining high-value products is achieved by incorporating the process before the biomass drying stage.

Keywords: Biomass, Biofuels, Chlorophyll, Production.

RESUMEN

L a biomasa de microalgas presenta un alto potencial para la obtención de biocombustibles de tercera generación. Ésta además contiene otros productos cuya recuperación puede contribuir a la sostenibilidad de las cadenas lineales de producción de biocombustibles. Estas sustancias actualmente se tratan como impurezas que se extraen junto con los lípidos influyendo negativamente en el proceso de producción de biodiesel, por lo que su separación produce un doble beneficio: por un lado, la obtención de productos de alto valor agregado y por otro, la producción de un aceite más puro para la generación del biocombustible, abordando el concepto de biorefinería.

En este estudio, se plantea la incorporación de una etapa de obtención de clorofila dentro de una topología de biorefinería, se evalúan las variables que afectan la separación de estos componentes y la localización más adecuada de la etapa dentro del esquema de proceso. Las mejores condiciones para la separación de pigmentos de los lípidos, se dan a una relación biomasa/solvente de 1/10 g/mL, temperatura de 45°C y tiempo de 4 h, siendo la relación biomasa/solvente la variable más influyente. La mayor eficiencia de obtención de productos de alto valor se consigue al incorporar el proceso antes de la etapa de secado de la biomasa.

Palabras clave: Biomasa, Biocombustibles, Clorofila, Producción.

RESUMO

A biomassa de microalgas apresenta um alto potencial para a obtenção de biocombustíveis de terceira geração. Além disso, contém outros produtos cuja recuperação pode contribuir para a sustentabilidade das cadeias lineares de produção de biocombustíveis. Estas substâncias atualmente são tratadas como impurezas que são extraídas junto com os lipídios influenciando negativamente no processo de produção de biodiesel, devido a isso sua separação produz um benefício duplo: por um lado a obtenção de produtos de alto valor agregado e, por outro a produção de um óleo mais puro para a geração do biocombustível, abordando o conceito de biorefinaria.

Neste estudo, é proposta a incorporação de uma etapa de obtenção de clorofila dentro de uma topologia de biorefinaria, são avaliadas as variáveis que afetam a separação destes componentes e a localização mais adequada da etapa dentro do esquema de processo. As melhores condições para a separação de pigmentos dos lipídios ocorrem em uma relação biomassa/solvente de 1/10 g/mL, temperatura de 45°C e tempo de 4 h, sendo a relação biomassa/solvente a variável mais influente. A maior eficiência de obtenção de produtos de alto valor é conseguida ao incorporar o processo antes da etapa de secagem da biomassa.

Palavras-chave: Biomassa, Biocombustíveis, Clorofila, Produção.

1. INTRODUCTION

At present, the continuous use of petroleum-based fuels as a source of energy is unsustainable, given its non-renewable origin that is directly related to the development of crude oil by progressively depleting the reserves available, leading to an increase in fuel prices around the world, among other consequences (Tverberg, 2012). From the environmental standpoint, there is a negative impact perceived as a result of the mass use of fossil fuels in terms of CO₂ emissions, which cause global warming along with other compounds (EPA, 2011). These environmental and economic factors have led to the consideration of non-conventional alternatives for the production of fuels to meet requirements as clean, renewable sources of energy.

Biofuel production is globally perceived as a viable option because it covers three strategic objectives: energy security, economic prosperity and environmental stability, which is why specialists around the world have focused on the study of this energy source. Biofuels can be obtained from renewable resources such as biomass, thus preventing the net contribution of greenhouse gases into the atmosphere. This way, the CO₂ resulting from combustion can be used in the formation of new biomass.

Microalgae biomass is among the raw materials currently being studied with the greatest interest for biofuel production because it has been demonstrated that it can provide a wide variety of compounds of biotechnological interest. Microalgae biomass is usually made up of 20 - 30% usable lipids for biodiesel production, 20 - 55% carbohydrates for the production of ethanol, 40 - 50% protein, which can be used as a nitrogen source in various applications and the rest is made up of other special substances that are typical of each strain of microalgae (Amaro, Guedes & Malcata, 2011).

Up to now, however, the linear chains of biofuel production using microalgae cannot process large-scale biomass due to technical and economic factors. In order not to miss out on the huge potential of this raw material González-Delgado and Kafarov (2011) suggested alternative routes for the integral use of microalgae biomass, including the valorization of residual biomass from the extraction of oil for biodiesel production by obtaining other high-value products, as well as the incorporation of the biorefinery concept in microalgae processing.

This paper proposes the incorporation of a stage to extract certain high-value products using microalgae such as chlorophylls in the conceptual designs of third-generation biodiesel and bioethanol production chains, by studying the variables that affect the separation of these components for a strain of national bioprospecting. It also examines the operating conditions for better extraction efficiency and the subsequent execution of the optimized procedure at different stages of the biofuel production chain based on microalgae, with a triple benefit as a direct impact:

• Separation of unwanted microalgae components at the microalgae oil extraction stages and the subsequent transformation thereof into biodiesel.
• Production of high value co-products using unwanted substances from the useful metabolites for the production of biofuels.
• Approximation of the use of microalgae biomass to the biorefinery concept, conceiving the integration of a process of total biomass use, thus improving the efficiency of the variables of the different processes to obtain products of interest such as biofuels.

2. THEORETICAL FRAMEWORK

Microalgae were the first organisms with the capacity to carry out photosynthesis and one of the agents in the creation of the earth's current atmosphere. These organisms are key elements in planetary balance, because they determine to a large extent the dynamics of carbon dioxide on earth and they are the basis of the food chain in the oceans (Richmond, 2004). These microorganisms can grow quickly and live in harsh conditions thanks to their cell structure. They convert sunlight, water, inorganic nutrients and carbon dioxide into biomass, efficiently producing lipids, carbohydrates and proteins in different proportions. It is estimated that there are more than 50000 species of microalgae, but only about 30000 have been analyzed (Mata, Martins & Caetano, 2010).

Microalgae biomass stands out as a promising source of energy, as it has been demonstrated that it can provide various products that are usable in energy systems such as methane produced by the anaerobic digestion of biomass, biodiesel from oil, biohydrogen and bioethanol (Pragya, Pandey & Sahoo, 2013). Over the last five years, research on microalgae for biofuel production has been focused on biodiesel due to its high oil productivity per area unit (Chisti, 2007), which means less land is required for cultivation and it does not compete directly with food crops. Various authors have contributed to the optimization of the stages in growing microalgae, in open ponds (Handler et al., 2012) as well as in photobioreactors, (Pegallapati, Arudchelvam & Nirmalakhandan, 2012) biomass harvesting (Garzón-Sanabria, Davis & Nikolov, 2012), oil extraction (González-Delgado & Kafarov, 2012; Halim, Danquah & Webley, 2012) and transesterification for conversion into biodiesel (Ehimen, Sun & Carrington, 2010) or hydrotreatment for transformation into Green-diesel. We have also develo-ped approaches to large-scale processing of microalgae using software for the entire biodiesel production chain using microalgae (Ofori-Boateng, Teong & JitKang, 2012) and for particular stages comparing existing and emerging technologies for extracting oil (Peralta-Ruiz, González-Delgado & Kafarov, 2013) and converting it into biodiesel.

Among the microalgae's different metabolites, there are various products of high commercial value such as chlorophylls, which are essential in many everyday products. They also have medicinal and therapeutic applications (Schumann, Häubner, Klausch & Karsten, 2005). However, these components are not used in biofuel production chains, and since the methods used in the processes of cell wall destruction and extraction are not selective, other metabolites (often unwanted) are obtained. This situation affects the purity of liquors rich in reducing sugars and triglycerides used in fermentation processes and transesterification respectively, and causing interference in the quantification of total lipids at the laboratory scale (Archanaa, Moise & Suraishkumar, 2012).

The biorefinery concept is based on processing biomass in a sustainable manner to obtain energy, biofuels and high value products through processes and equipment for biomass transformation. Microalgae are cataloged as promising candidates in biorefinery processes due to their varied composition and biotechnology potential, seeking the total use of their biomass (González-Delgado & Kafarov, 2011), obtaining not only a lipid extract for biodiesel production, but also valuable by-products, whose higher commercial value can contribute to the viability of the chain of biofuel production from microalgae. Figure 1 illustrates the valorization of products produced from microalgae biomass.

3. EXPERIMENTAL DEVELOPMENT

We used dry biomass of Amphiprora sp. provided by Corporación Instituto de Morrosquillo (Punta Bolívar, Colombia), which was grown for 15 days in an F/2 medium. Two types of solvent were evaluated for chlorophyll and lipid extraction: polar (ethanol, methanol) and non polar (hexane, cyclohexane). In each experiment, 3 g of dry biomass were used in order to homogenize it. The biomass was macerated using a ceramic mortar. After that, the polar solvent was added as a biomass/solvent ratio of 1:10 g/mL. Then, the biomass-solvent mixture was stirred at 350 rpm and ambient temperature for 24 hours. Later, the mixture was filtered by vacuum and was washed with the solvent used in each experiment (ethanol or methanol) until colorless cells were obtained. The pigments from the liquid phase were quantified. To purify the extract, 6 mL of non polar solvent and 4 mL of distilled water were added to the liquid phase in order to separate the phases. They were taken through a separating funnel and the lipophilic phase was extracted. This process was repeated four more times to ensure the effective separation of oil from microalgae. Finally, solvent was separated by volatilization in order to obtain the lipid extract to make the respective calculations.

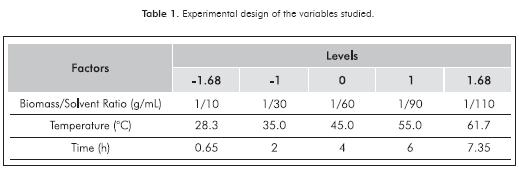

Once the solvent mixture was obtained for the extraction of pigments and lipid extract, a central composite design was made for a confidence interval of 95% using STATISTICA 7.0 to evaluate the effect of the variables of temperature (35, 45 and 55ºC), time (2, 4 and 6 h) and biomass/solvent ratio (1/30, 1/60 and 1/90 g/mL) in the stirring stage of the chlorophyll-a and crude oil extraction. A replica was made of each combination suggested by the experimental design in order to reinforce the results by comparing the data obtained between the different levels and data from the same combination. Table 1 shows the values and levels of the variables studied.

The pigments were quantified by measuring the extracts from the hydroalcoholic phase following vacuum filtration in a UV-visible spectrophotometer (Spectroquant Pharo 300 Merck) at 665 and 650 nm. Using Equation 1, where Chl-a is the concentration of chlorophyll-a in mg/L. The data were standardized in order to rule out erroneous results by diluting the components at a larger volume of solvent.

For lipid extraction, the residual biomass was ca-rried out in a Soxhlet extractor with 250 mL of the non polar solvent selected. The lipids were extracted from the biomass by heating through 18 hours. The non polar solvent is later recovered by simple distillation, and the lipid extract is subjected to volatilization up to constant weight. Chlorophyll and lipid extract percentages were calculated using Equation 2.

4. RESULTS

Selection of Extraction Solvents and Purification of High-Value Products

The results in Figure 2 show that the best solvent for extraction of desired high value products was ethanol, because it increased the amount of chlorophyll extracted compared to methanol. This result confirms the efficiency of said solvent for chlorophyll extraction in microalgae of the Naviculales order. In addition, ethanol has advantages to be taken into account for biorefinery development, such as low toxicity compared to methanol and the possibility of production from the fermentation of cellulosic material.

Figure 3 shows the results of purification of crude extract from chlorophyll by adding a neutral solvent that is similar to other metabolites that are present, for extraction with methanol, as well as with ethanol. It is noted that by using a mixture of cyclohexane/methanol, a larger quantity of crude extract is removed. This means that the use of methanol on chlorophyll extraction drags a larger quantity of non polar metabolites, which are considered impurities of the product to be obtained, and they, in turn, are effectively removed with cyclohexane. It can also be seen in Figure 3 that the lowest percentage of crude extract removal is from the ethanol/cyclohexane mixture. This is due to the fact that, although ethanol and cyclohexane have low miscibility at the temperature of extraction of the high value products, there is little difference between the polarities of the solvents, which makes it difficult for the components from the hydrophilic phase to migrate to the hydrophobic phase. For the cases in which hexane was used as a purification solvent of the crude extract, the differences between removal percentages were not significant. This may be due to the fact that hexane has a low miscibility with ethanol as well as with methanol.

Based on the results obtained in this section, it can be said that for the extraction and purification of high value products such as chlorophylls, a mixture of ethanol/hexane should be used because the polar solvent generates more products of interest compared to methanol and, considering the biorefinery concept, this solvent is potentially obtainable by transforming microalgae components such as cellulose and hemicellulose. Furthermore, adding hexane increases the removal of hydrophobic components from the crude extract regard-less of the type of polar solvent used. In addition, from the economic standpoint, it is a less expensive solvent than cyclohexane, which favors process economy.

Influence of Different Variables in the Extraction of Chlorophyll-a

Figure 4 shows the effect of the variables studied on the extraction of chlorophyll-a using the ethanol-hexane solvent mixture. The response surface diagrams show that the performance of the extraction decreases significantly upon increase of extraction time and quantity of solvent used for a constant temperature. This may be due to degradation of the high value component studied. The diagram of the response surface for a constant time (Figure 4c) also shows the decrease in the chlorophyll- a; percentage obtained at high biomass/solvent ratios. This degradation may be due to factors such as changes in pH resulting from the presence of flocculant, presence of water in the extraction solvent or favorable operating conditions for the generation of phaeophytins and pyrophaeophytins. The aforementioned are consequence of the consecutive reaction at low temperatures.

The Pareto diagram (Figure 4a) shows that the only significant variable in the extraction of chlorophyll-a from the microalgae Amphiprora sp. is the biomass/solvent ratio, and its effect is inversely proportional, as well as the effect of the extraction time variable. It is important to point out that interaction between extraction time and biomass/solvent ratio has a positive effect on extraction.

Influence of the Stage of Extraction of Products with High Added Value on the Efficiency of Oil Extraction for Biodiesel Production

According to the results illustrated in Figure 5, the inclusion of a prior stage to obtain high value products affects the efficiency of crude oil extraction from microalgae at a later stage, and the magnitude of this effect changes based on the different variables studied at the chlorophyll extraction stage. The effect is almost null when metabolites are extracted at high biomass/solvent ratios over prolonged times (Figure 5b) and event tends to be negative at high biomass/solvent ratios and high temperatures (Figure 5c).

The increase in the quantity of lipids obtained when chlorophylls are extracted at low biomass/solvent ratios and high temperatures may be due to the fact that the operating conditions that allow increased chlorophyll extraction weaken the cell wall of the microalgae by decomposing the cellulosic material present therein. This allows increased contact between the hexane and oil in the following stage of lipid extraction, facilitating the obtainment of crude oil. However, analysis of the magnitude of variations in extraction efficiency shows that they do not exceed 2% upon increase, and 0.3% upon decrease, which is low compared to extraction efficiencies obtained at the laboratory scale for this strain at 92%. The Pareto diagram shows that none of the variables studied to obtain products with high added value significantly affect lipid extraction (Figure 5c).

Selection of Operating Conditions for the Extraction of Microalgal Metabolites

The results of the central composite design show that extraction percentages are low compared to those obtained with other strains such as S. platensis for the case of phycobiliproteins (Silveira, Burkert, Costa, Burkert & Kalil, 2007). This behavior may be attributed to factors such as the nature of the strain, which does not produce large quantities of chlorophylls, the quantity of ash from the biomass harvesting stage, and the preliminary microalgae drying stage, which can degrade the metabolites of interest.

Location of the Stage of Extraction of Products with High Added Value in a Microalgae-Based Biorefinery

Based on the low percentages of chlorophyll obtained using microalgae biomass from the drying stage, we decided to test extraction with optimal operating conditions obtained at the end of the microalgae harvesting stage, and following the cell disruption stage. This process was performed in order to compare the percentages of metabolites obtained. Figure 6 illustrates the three alternatives for the location of the chlorophyll extraction stage with the respective extraction efficiencies, which can be present after biomass drying and before cell disruption (Figure 6a), after cell wall disruption but before lipid extraction (Figure 6b), or after harvesting and before drying (Figure 6c). It is clear that extraction efficiencies are higher when using moist biomass from the harvesting stage (Figure 6 c), which shows that both biomass flocculation and drying affect the content and extractability of the components, due to the fact that biomass drying temperature is 105°C, which is higher than chlorophyll degradation temperature. Water content in post-harvesting biomass does not affect the extraction efficiency of the products as significantly as the drying process, so the results show it is better to incorporate this stage prior to the microalgae drying stage.

5. CONCLUSIONS

• Amphiprora sp. is a promising strain for the development of a microalgae-based biorefinery due to the presence of special high-value subs-tances in the composition thereof. The following are the best chlorophyll and lipid extraction conditions for biodiesel production using dry biomass of the microalgae Amphiprora sp: a temperature of 45ºC, a time of 4 h and a biomass/solvent ratio of 1/10 g/mL.
• The statistical analysis of the results showed that the biomass/solvent ratio is the only significant variable for the extraction of chlorophyll-a, and less significant (but more influential than the other variables: temperature and time) in the extraction of crude oil.
• Incorporating a chlorophyll extraction stage in a large-scale biorefinery process using microalgae is only convenient from the process efficiency standpoint when executed before the biomass drying stage, because the elimination of moisture from the strains to increase the efficiency of fermentable sugar and oil extraction degrades the primary and secondary pigments of high commercial value.

ACKNOWLEDGEMENTS

The authors would like to thank the Colombian Ministry of Agriculture and Rural Development: project 2008D32006-6710 "Bioprospecting of Colombian microalgae for biodiesel production"; Erika Amaya and Lina García for their valuable technical assistance in the experimental portion of the study; the Administrative Department for Science, Technology and Innovation - COLCIENCIAS, for supporting this study through the Francisco José de Caldas scholarships to support national Doctorates; and the project "Creation and Strengthening of a Network to Transfer Knowledge and Technology between the United States and Colombia for the Development of Biorefinery Processes for the Production of Biofuels and High-value Products from Microalgae Biomass".
